SVS Windy Ventilators are always spinning... always ventilating. Non-stop ventilation is possible due to the integrated bearing housing, which ensures ventilator rotation at even wind speeds of less than 1 KM per hour.

OK Tested

Stable in 125 KpH wind test

Leak proof in heavy rain test

Features

Extremely low starting speed ensures non-stop rotation and continuous ventilation

Strong construction. Higher vane thickness prevents shearing in high winds

Vertical installation using variable angle elbow

Bearing protected against dust, smoke, fumes

Highlights of shorter length FRP base design and unique installation procedure

Installation procedure of ventilator ensures that it does not get uprooter in high winds

Special FRP base design and installation procedure prevents accidents of people working on the roof

Leak proof installation

winder

WINTER

Without ventilation, Moisture laden air rises and condenses in roof space, dampness is trapped.

windyhome

SUMMER

Without Ventilation heat from the roof space radiates into the room. Heat is Trapped.

Comparison of WINDY PLUS model with other available ventilation systems.

Features	Model WINDY PLUS	Monitor Roof/ Gravity Ventilators
Bearings	Steel	---
Dust proof Individual Bearing Housing For Protecting Sealed Bearings	--	---
Completely Enclosed & Dust Proof Integrated Bearing Housing	Yes	---
Bearings Aligned with each other due to integrated housing	Yes	---
Rotation at nearly zero wind speeds due to aligned bearings	Yes	---
Static Balancing	Yes	---
Suitable for roof heights below 20 feet	Yes	No
UV Stabilized powder coatings for longer product life	Yes	Maybe
Suitable for dusty/smoky/sooty/oily/harsh conditions	Yes	No
Special Rubberized Hardware to prevent rain ingress	Yes	No
Exhaust capacity	High	Verylow
Exhaust problem due to air back draft	No	Yes
Ventilator material	Aluminium	Aluminium / GI
Hardware material	SS	Zinc Plated

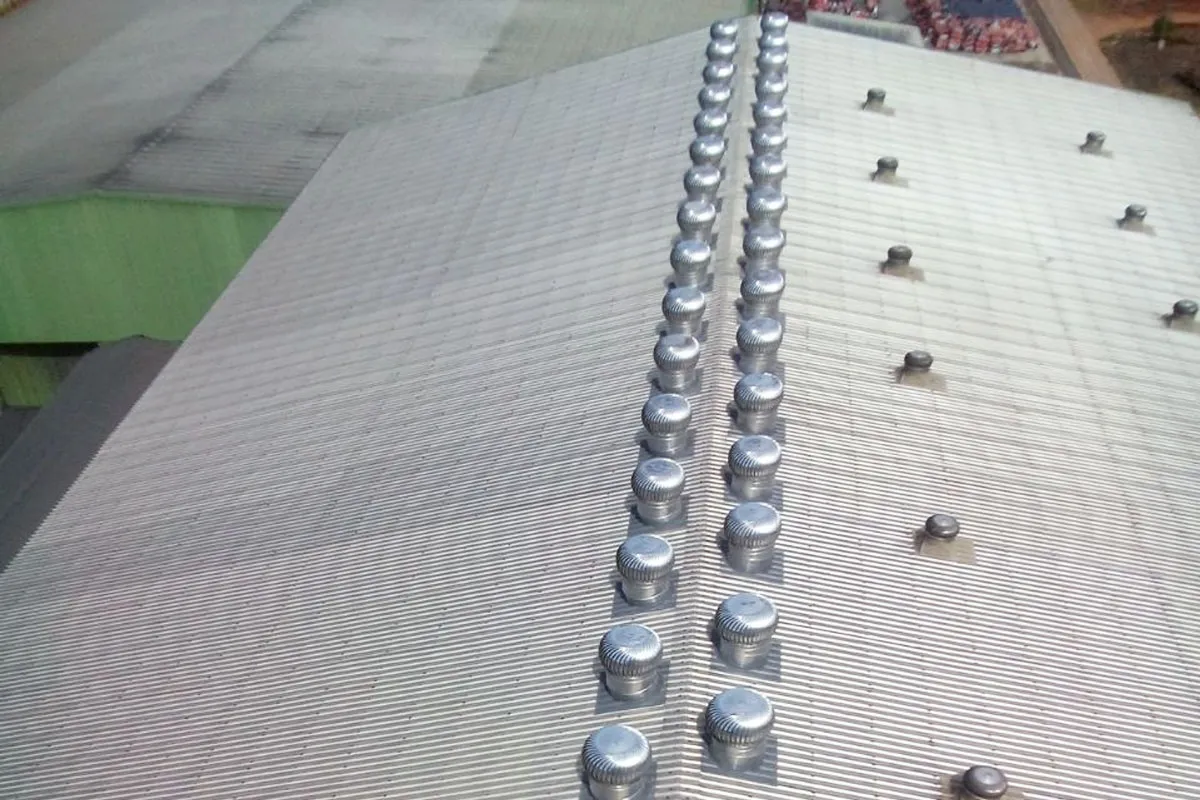

Completed Installations

Gujarat Tea

Hetero Labs

Hulas

KOEL

MSC Transformers, Jejuri

Neatwind

Rimjhim Windy

The Andhra Pradesh Paper Mills Ltd.

Windy, Hulas

The mechanics of air movement are very simple. The hot air inside the shed tends to rise up. When the ventilators rotate, they suck the warm air out through the vents, allowing a supply of fresh air at ambient temperature through the doors and windows.

ventilators

TECHNICAL SPECIFICATIONS

MODEL	DIMENSION IN mm
MODEL	A	B	C
WINDY 14 PLUS	360	500	600
WINDY 24 PLUS	600	725	745
WINDY 36 PLUS	900	1030	1007

MATERIAL SPECIFICATIONS

Top:	All aluminium with integrated and reinforced main bearing housing
Shaft:	Stainless Steel
Varipitch:	Aluminium
Base Flashing:	FRP matching customers roof profile
Rotation Bearings:	Twin ZZ Ball Bearings encased in single integrated bearing housing

Benefits of Windy

Steel ball bearings
Variable Angle Elbow for Vertical Installation
Completely enclosed & dust-proof integrated bearing housing
Bearings are aligned with each other due to integrated housing
Rotation at nearly zero wind speeds due to aligned bearings
Static balancing
Suitable for low roof heights

Optional UV stabilized powder coating for corrosive atmosphere
Suitable for dusty / smoky / sooty / oily / harsh conditions
Special rubberized hardware - to prevent rain ingress
High exhaust capacity
No exhaust problem due to air back draft
All Aluminium construction
Stainless steel hardware

Test Certificate From IIT
